Finite Element Library
Finite Element Technology, as discussed here, involves the mathematical formulation of elements, resulting in a Strain-Displacement B-Matrix, which is the output of these APIs. The B-Matrix serves as the foundation for constructing everything else needed for nonlinear finite element analysis, such as the tangent stiffness and internal force vector. If you prefer, we offer complementary API packages to handle these tasks for you.
Developed in C++ for Linux and Windows systems.
Shell Elements
Shell MITC4
Shell element with 4 nodes and full in-plane quadrature rule. User-defined number of integration points along the thickness direction of the shell. Reissner-Mindlin formulation with ANS to alleviate transverse shear locking. Ideal for thin shell simulations.
Shell MCYSE
Shell element with 4 nodes and reduced in-plane quadrature rule. User-defined number of integration points along the thickness direction of the shell. Reissner-Mindlin formulation with ANS to alleviate transverse shear locking. Stabilisation of the spurious (hourglass) modes included. Ideal for thin shell fast simulations.
Currently under construction, will be available soon
3D Hexagonal (Brick) Elements

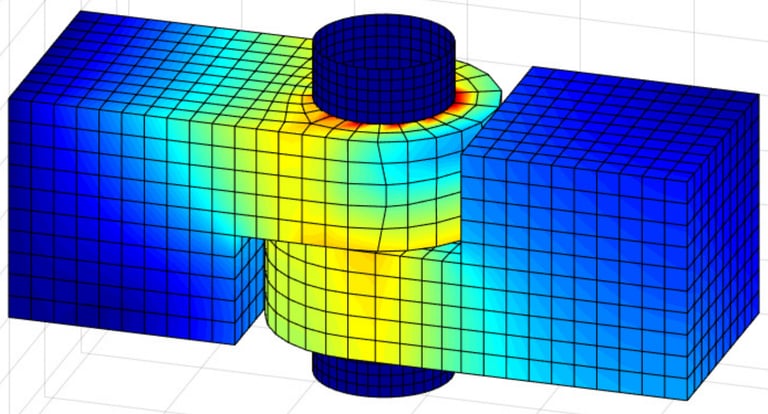

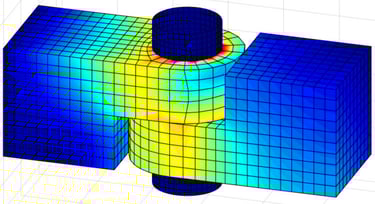

Hexa8 Brick Element
3D Hexagonal (Brick) element with 8 nodes and full integration rule with 8 integration points. This element is not suitable for incompressible or nearly incompressible materials.
Currently under construction, will be available soon
Solid-Shell Elements

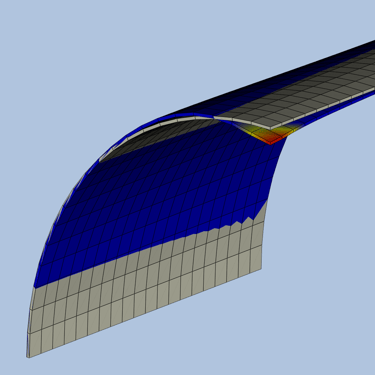

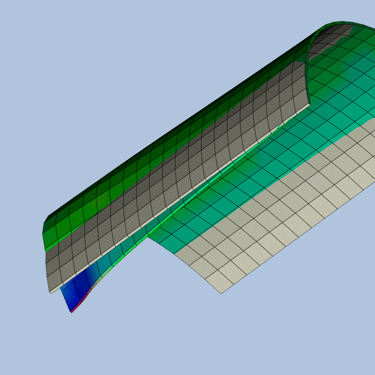

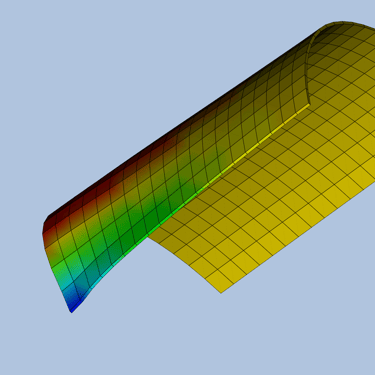

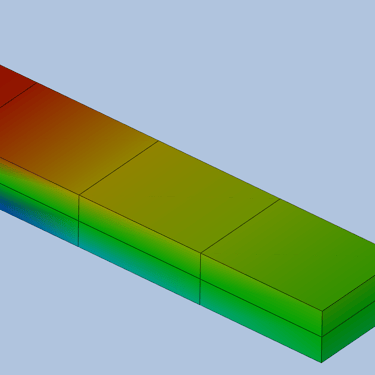

MRESS Solid-Shell Element
3D Hexagonal solid-shell element with 8 nodes and in-plane reduced integration rule. This element includes the enhanced assumed strain formulation for improved bending behaviour and several techniques to remove locking pathologies.
