Buckling Analysis with the MITC4 Shell Element
4o
Flow for the API Methods to be used for Linear Buckling Analysis:
1st: call the Stiffness Matrix method for K_L
2nd: solve the system of equations for the displacements
3rd: call the Stresses method to get the stresses at the Gauss points
4th: call the Geometric Stiffness Matrix method for K_G

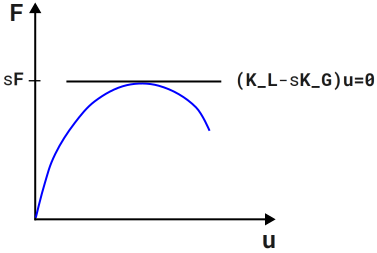

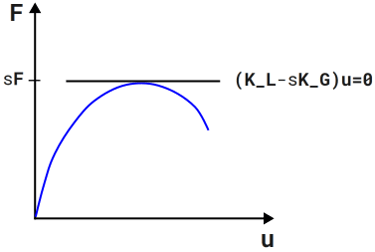

5th: solve the eigenvalue problem K_L.u = s.K_G.u

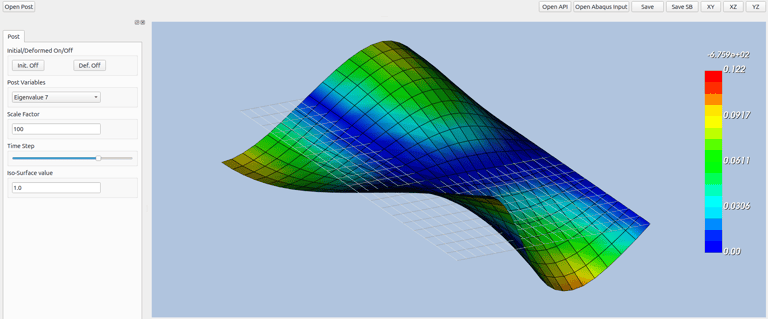

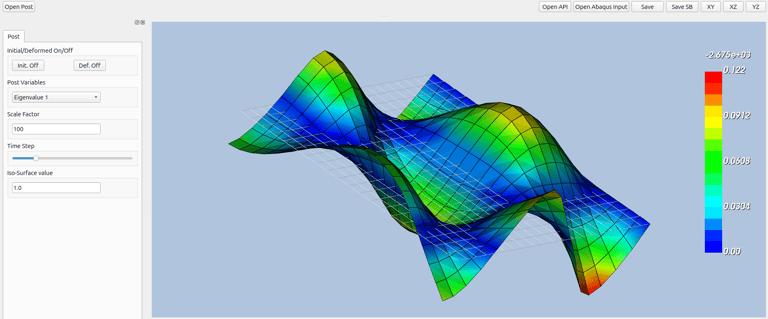

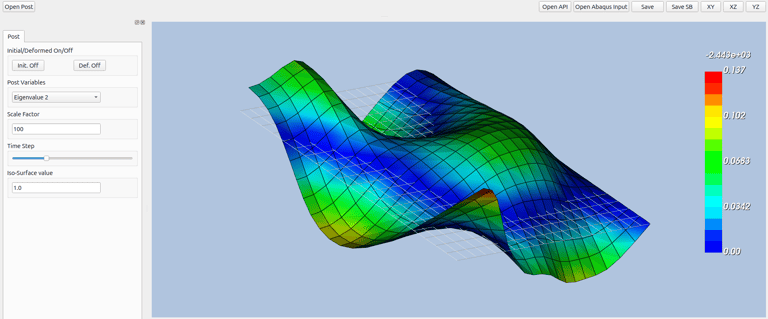

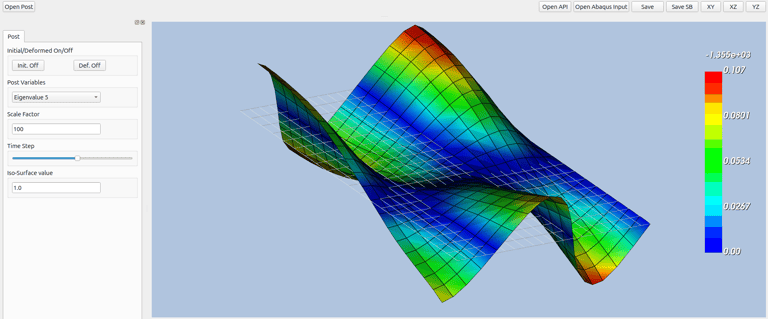

where s are the eigenvalues (buckling loads) and u are the eigenvectors (buckling modes)
